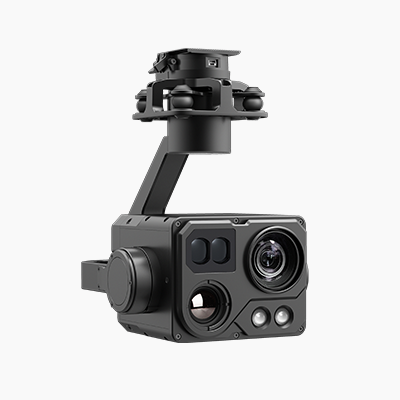

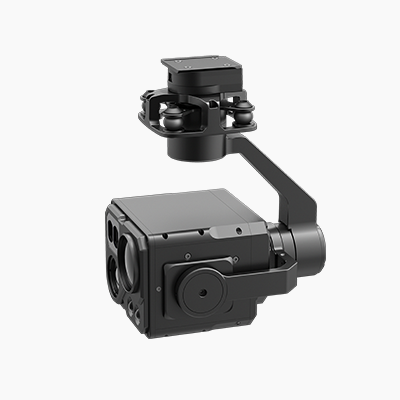

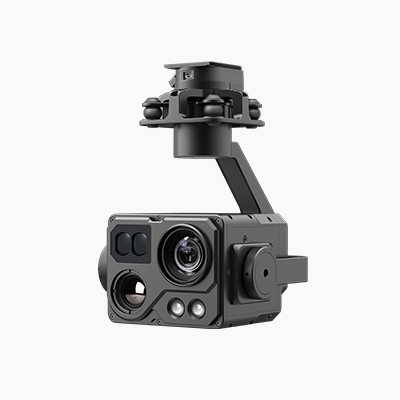

Z-9B Intelligent Multi-sensor Pod

The Z-9B equips with a high accuracy 3-axis nonorthogonal gimbal, an 120x hybrid zoom camera and a long-wave thermal camera, which can provide visual and infrared images simultaneously. Thanks to the laser range finder, the Z-9B can provide the location of a target and the distance to it that improves working efficiency. Turning on the laser lighting module, the Z-9B can provide a clear image even in complete dark environments.

The Z-9B have AI multi-object detection and tracking function. The gimbal camera can intelligently identify the persons and vehicles in the image, and constantly track one of them.

The Z-9B can be mounted tool-lessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, user can watch the image from the camera and control the pod real-timely on a computer.

Characteristics

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· Carries an 120x hybrid zoom camera, a thermal camera and a laser range finder.

· Laser lighting module ensures the cameras getting a clear image even in complete darkness.

· 3-axis orthogonal mechanical stabilized structure, is able to spin continually around its yaw axis.Supports network, UART and S.BUS control.

· Supports both private protocol and MAVlink protocol.

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the Z-9B provides a stabilization accuracy at ±0.01°.

· Can be mounted onto multiple carriers, whether downward or upward.

· With the Dragonfly software, user can watch the image and control the pod without protocol ducking.

· Photos and videos can be downloaded online through the "Gallery" function of the Dragonfly software.

· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.

· 20~53 VDC wide voltage input.
