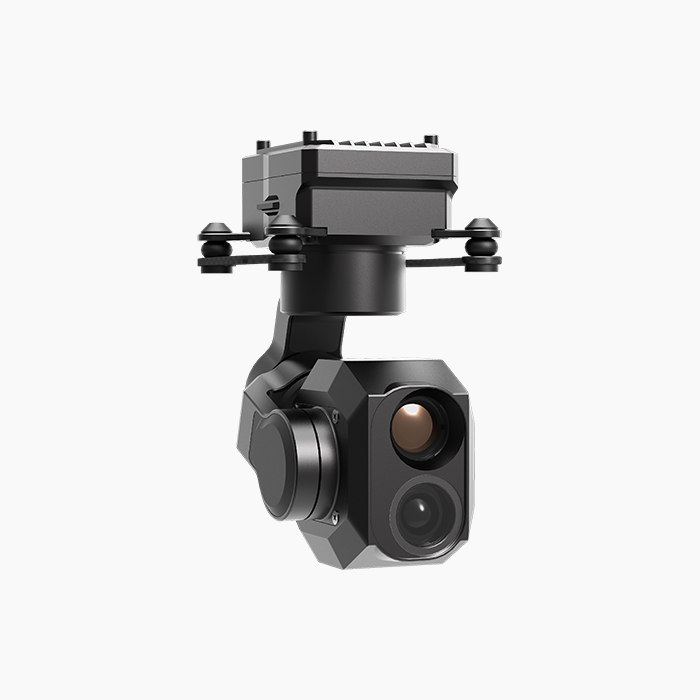

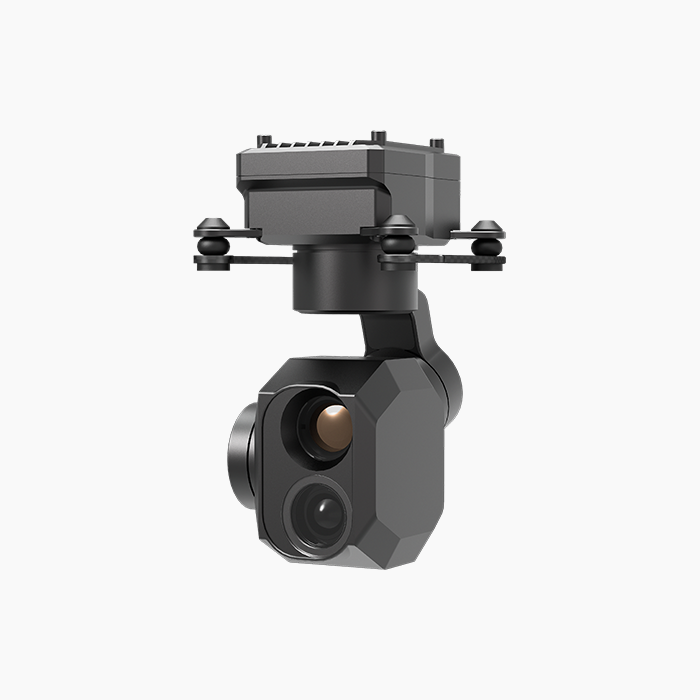

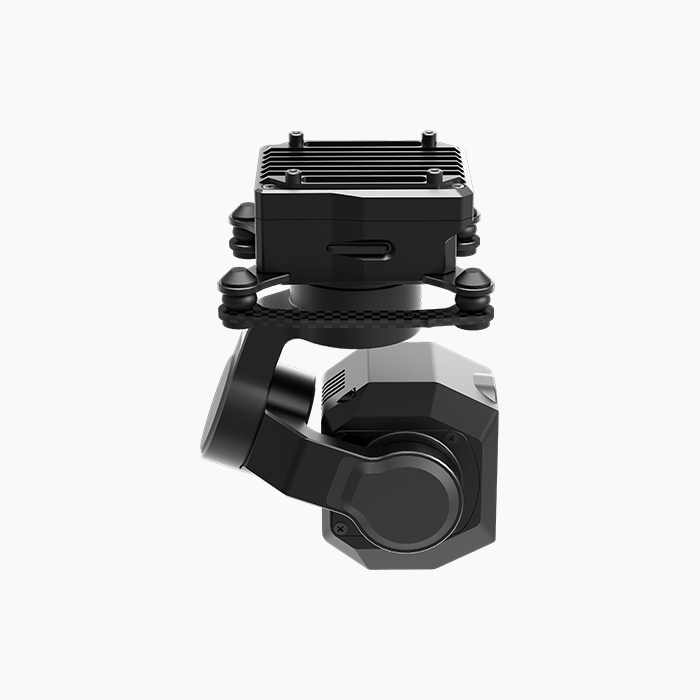

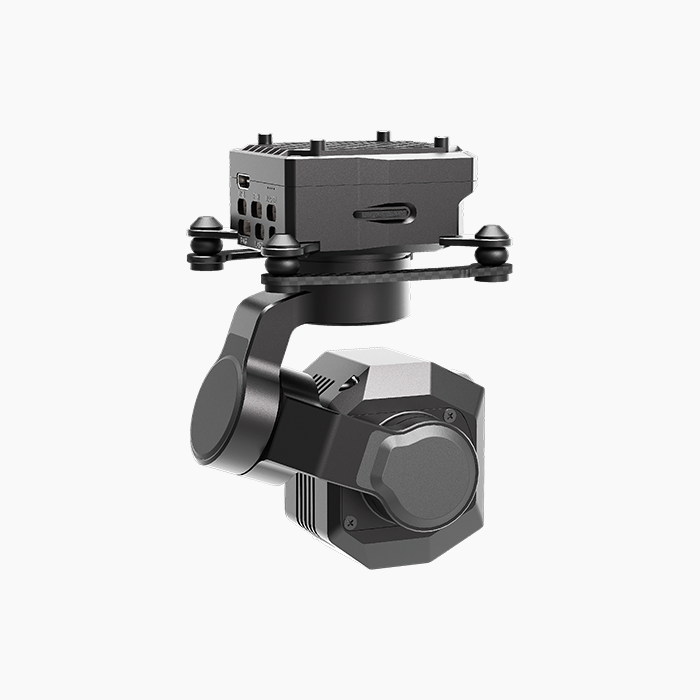

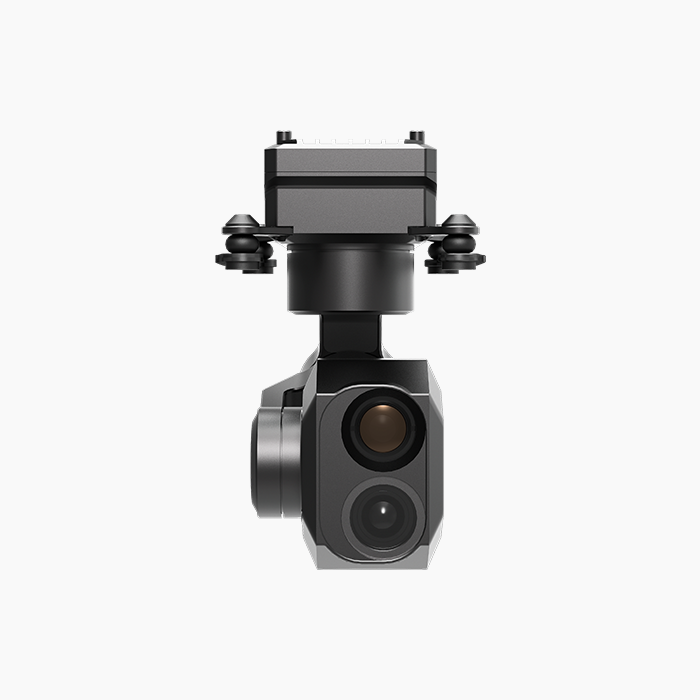

Z-2 Mini Intelligent 4K Full-Color Night Vision Dual-Sensor Micro Pod

The Z-2Mini Intelligent 4K Full-Color Night Vision Dual-Sensor Micro Pod carries a 4K resolution camera empowered with the AI-ISP full-color night vision imaging engine, which can provide a good full-color night observation performance even in extremely low-light environments such as night time or confined spaces. The Z-2Mini also features a long-wave infrared thermal camera, which can capture thermal images. The Z-2Mini has AI multi-object detection and tracking function. The pod can intelligently identify the persons and vehicles in the image, and constantly tracking one of them.

With a high accuracy 3-axis nonorthogonal gimbal, the Z-2Mini can be mounted hether downward or upward. With the Dragonfly software, users can watch the image from the camera and control the pod real-timely on a computer. With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

Characteristics

· Carries an AI-ISP 4K full-color night vision camera and a thermal camera.

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· Micro 3-axis nonorthogonal mechanical stabilized structure reducing the weight down to 110g.

· Supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol. Support image transmission through network and HDMI.

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the gimbal provides a stabilization accuracy at ±0.01°.

· Can be mounted onto multiple carriers, whether downward or upward.

· With the Dragonfly software, user can watch the image and control the podwithout protocol ducking.

· Photos and videos can be downloaded online through the "Gallery" function of the Dragonfly software.

· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save.

· 10~26.4 VDC wide voltage input.
