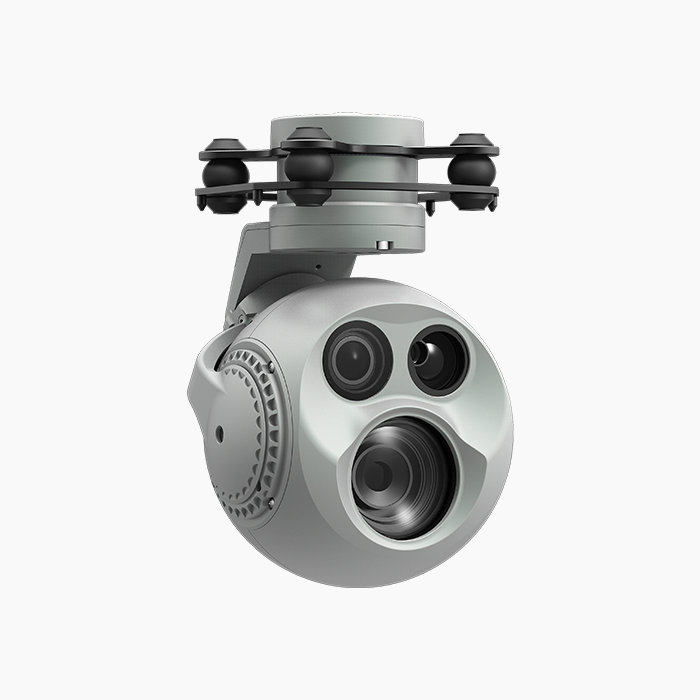

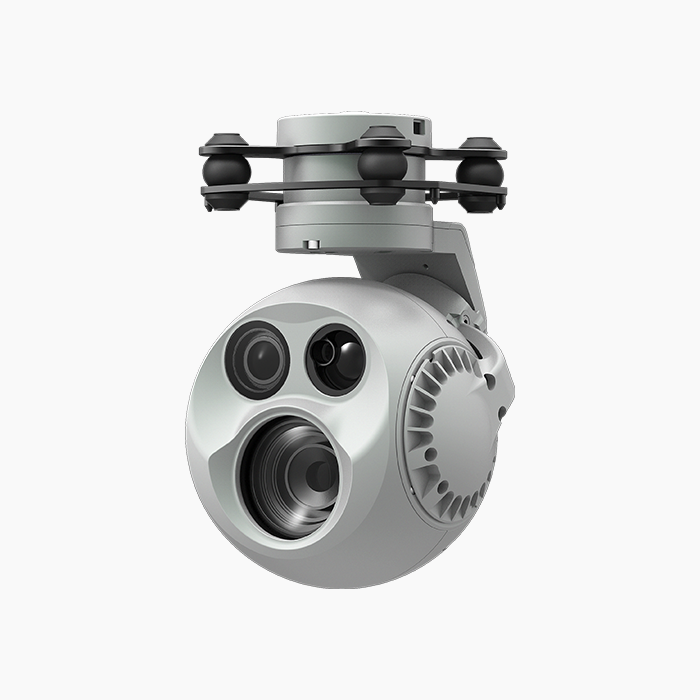

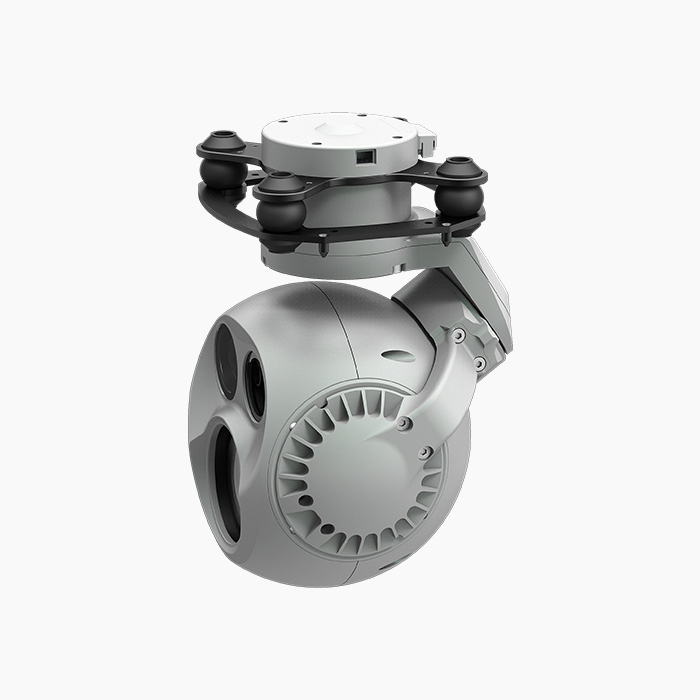

D-90DE Intelligent Multi-sensor Spherical Pod

The D-90DE equips with a high accuracy 3-axis nonorthogonal gimbal, a wide-angle camera and a 30x hybrid zoom camera. User can quickly switch to a highly magnified zoom camera view after recognizing a target in a wide camera view. Thanks to the laser range finder, the D-90DE can provide the location of a target and the distance to it that improves working efficiency.

The D-90DE have AI multi-object detection and tracking function. The gimble camera can intelligently identify the persons and vehicles in the image, and constantly track one of them.

The D-90DE can be mounted tool-lessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, user can watch the image from the camera and control the pod real-timely on a computer.

Characteristics

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· Combination of wide-angle camera and 30x hybrid zoom camera, which can quickly switch between overall and detailed view.

· Laser range finder provides the location of a target and the distance to it.

· Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-90DE is able to spin continually around its yaw axis.

· With the GCU, the D-90DE supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-90DE provides a stabilization accuracy at ±0.01°.

· Can be mounted onto multiple carriers, whether downward or upward.

· With the GCU and the Dragonfly software, user can watch the image and control the podwithout protocol ducking.

· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.

· 14~53 VDC wide voltage input.
